The Unsung Hero of Industrial Automation
In the intricate and demanding world of industrial processing, precision is not just a goal; it is a fundamental requirement. Behind the scenes of sprawling power plants, sophisticated chemical facilities, and critical water treatment systems, there is an array of components working in perfect harmony. Among these, the Regulating Valve stands out as a crucial element, the unsung hero that ensures stability, efficiency, and safety. This device is far more than a simple tap; it is a highly engineered instrument designed to meticulously manage the flow of fluids and gases, making it the cornerstone of modern automated control systems. Its ability to finely adjust process variables is what separates a chaotic, inefficient operation from a smooth, productive one.
Defining Precision: The Role of the Flow Control Valve
A Regulating Valve is a specific type of valve used to modulate flow or pressure in a system. Unlike a basic on/off valve, which operates in fully open or fully closed positions, a regulating valve can be positioned anywhere between these two extremes. This capability is what makes it an essential Flow control valve. By precisely adjusting the opening through which a fluid passes, these valves can maintain process variables like flow rate, pressure, and temperature at a desired setpoint. Imagine a complex chemical reaction that requires a steady, unwavering supply of a specific catalyst. A simple on/off valve would be too crude, causing surges and deficits that could compromise the entire batch. A high-quality regulating valve, however, provides the delicate touch needed to feed the catalyst at the exact rate required, ensuring product quality and process consistency. This modulation is the key to creating stable, repeatable, and efficient industrial outcomes across countless applications.
Anatomy of a Modern Control Valve

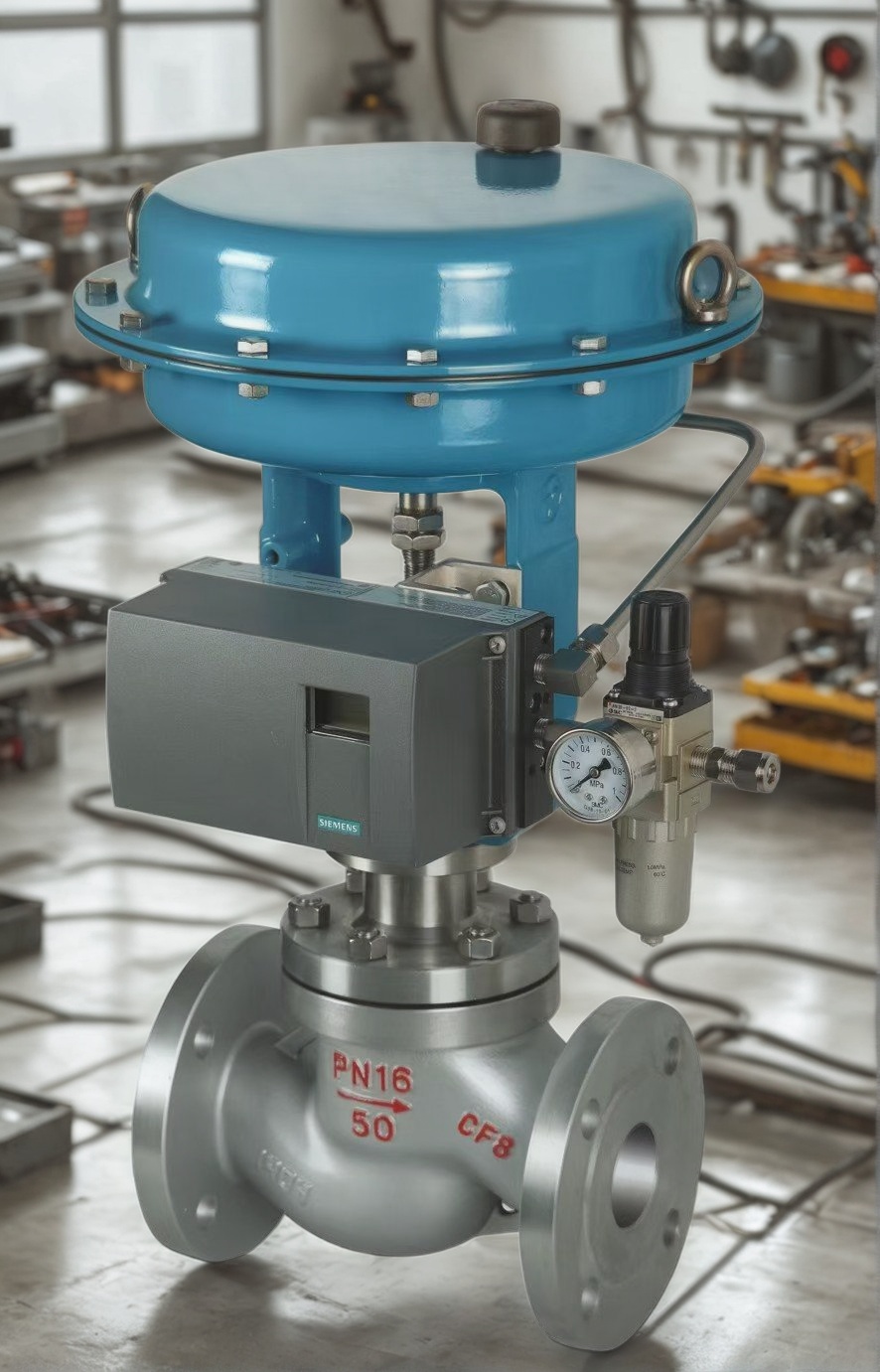

To truly appreciate the engineering behind these devices, let’s dissect a modern, cutting-edge Control valve designed for today’s high-stakes industrial environments. This isn’t just a piece of metal; it’s a sophisticated assembly of components, each playing a vital role. At its heart is a robust pneumatic actuator, easily identifiable by its sleek, bold blue housing. This actuator is the muscle of the operation, converting compressed air into the mechanical force needed to position the valve. Its sturdy construction guarantees dependable and smooth operation, even in high-demand scenarios where failure is not an option. The pneumatic system at its core offers the fluid, responsive control necessary for the most precise applications, providing the power behind the precision.
The Intelligent Core: Advanced Positioning and Regulation
Power is nothing without intelligence, and that’s where the integrated Siemens positioner comes into play. Encased in an elegant, matte black housing, this component acts as the brain of the Control valve. It receives a control signal from the plant’s automation system and translates it into an exact valve position, ensuring real-time accuracy and operational superiority. This seamless integration with modern control systems highlights Siemens’ reputation for reliability and smart industrial solutions. Complementing this is a finely tuned pressure regulation system, complete with a clear, direct-readability gauge. Its polished metallic components not only provide a durable appearance but also deliver unwavering performance, ensuring the actuator receives consistent air pressure for flawless operation, even under fluctuating plant conditions. This synergy between the positioner and regulator ensures the valve responds instantly and accurately to system commands.
Built to Last: Material and Design Excellence
The physical foundation of this remarkable device is its valve body, the part that directly interacts with the process fluid. Crafted from high-grade CF8 stainless steel, the body masterfully balances exceptional durability with superior corrosion resistance. This makes it suitable for a wide range of aggressive or sensitive media, from harsh chemicals to purified water. The inclusion of flanged connections guarantees a secure, leak-proof fit and straightforward installation into existing pipeline systems. With a robust PN16 pressure rating and a standard DN50 size, it has the capacity to handle significant industrial flows effectively. The internal architecture utilizes a globe valve design, a choice celebrated in engineering circles for its superb ability to modulate fluid flow. The linear control characteristic of a globe valve is perfect for a Flow control valve, allowing for incredibly fine adjustments and contributing directly to process stability and reliability.
Versatility in Action: Applications Across Key Industries
The true value of such a sophisticated Regulating Valve is demonstrated by its versatility across diverse industries. In power generation, it can precisely control the flow of steam to turbines, optimizing energy output and ensuring operational safety. In water treatment plants, this type of Control valve is indispensable for dosing chemicals with pinpoint accuracy, guaranteeing water quality while minimizing waste. Within the realm of plant automation and chemical processing, its role is even more critical. It can manage the flow of reactants, control reactor temperatures by regulating coolant flow, and maintain stable pressures in distillation columns. In each of these environments, the combination of a powerful actuator, an intelligent positioner, and a durable, corrosion-resistant body ensures that this valve not only performs its function but enhances the entire process. Its blend of visual appeal and engineering excellence sets a new standard for what a modern regulating component can and should be, delivering consistent, superior performance whether upgrading an old system or designing a new one from the ground up.
