Machine Feature
Double spindle single turret turning&milling CNC lathe
1、High Precision and Efficiency
2、Multi-process Integration
3、Dual Spindle Design
Double spindle single turret turning&milling CNC lathe
1、Y-Axis Functionality
2、Live Turret
3、Automation and Intelligence
Double spindle single turret turning&milling CNC lathe
1、Combined Turning and Milling
2、Flexibility
3、Double-sided processing

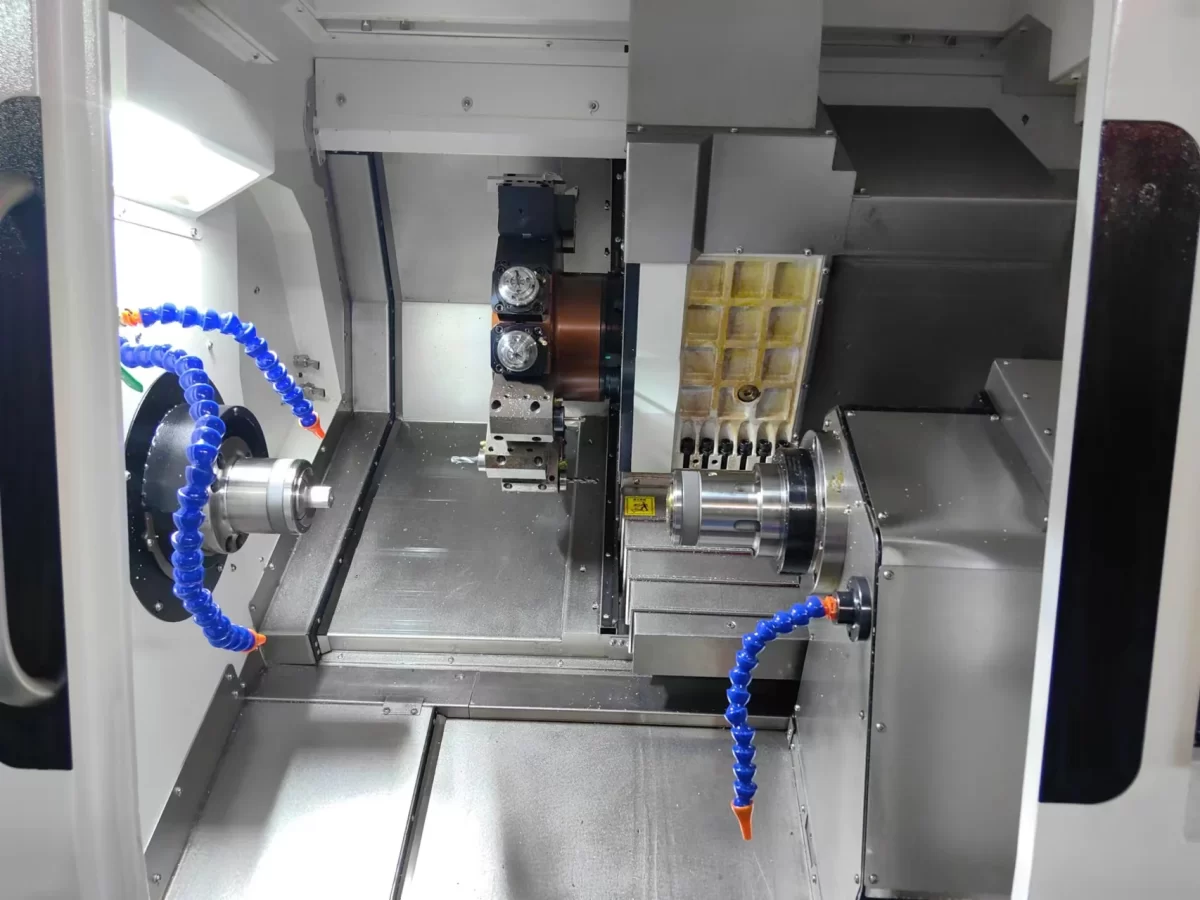

Product Picture
Product Parameters
|
ITEMS
|
UNITS
|
MODEL(TX800-8PY)
|
MODEL(TX800-8DIY)
|
|
|
Max.Swing Diameter
|
mm
|
600
|
600
|
|
|
Max.Turning Length
|
mm
|
550
|
450
|
|
|
Spindle nose
|
_
|
A2-6(8inch)
|
A2-6(8寸）/A2-5（6 inch electrospindle)
|
|
|
Max.Turning Diameter
|
mm
|
420
|
340（Tool Cutting Center）
|
|
|
Spindle speed
|
r/min
|
0-3200/-
|
0-3200/0-4500
|
|
|
Spinle bore
|
mm
|
∮66/-
|
∮66-∮56
|
|
|
Power head Maximum speed
|
r/min
|
10000
|
||
|
Power head rate speed
|
r/min
|
4500
|
|
|
|
Spindle motor power
|
kw
|
11kw
|
11kw/11kw electrospindle
|
|
|
Tool installation
|
_
|
BMT55-12stations（direct-drive power output）
|
||
|
Max.number of tools
|
pcs
|
12
|
|
|
|
X1/Z1/Z2/Y axis stroke
|
mm
|
210/560/-/±70
|
210/560/460/±70
|
|
|
X1/Z1/Y/Z2 axis motor power
|
kw
|
3.1/3.1/3.1/-
|
3.1/3.1/3.1/3.1
|
|
|
Turret motor power
|
kw
|
0.75/1kw
|
||
|
X1/Z1/Z2 axis repeatability
|
mm
|
±0.005
|
||
|
Tailstock stroke
|
mm
|
500（Hydraulic Programmable）
|
/
|
|
|
Spuare tool holder size
|
mm
|
25×25
|
||
|
Round hole tool holder size
|
mm
|
∮25 or ∮32
|
||
|
Power head drive motor
|
kw
|
8.8
|
||
|
X1/Z1/Y/Z2 axis Rapid feed speeds
|
m/min
|
20/20/15/-
|
20/20/15/20
|
|
|
Hydraulic Station motor power
|
kw
|
1.5
|
||
|
Machine Power
|
kw
|
36
|
49
|
|
|
Machine weight approx.
|
kg
|
3800
|
4800
|
|
|
Machine Dimensions(L*W*H)
|
mm
|
2800*1550*1800
|
2800*2900*2100
|
|
