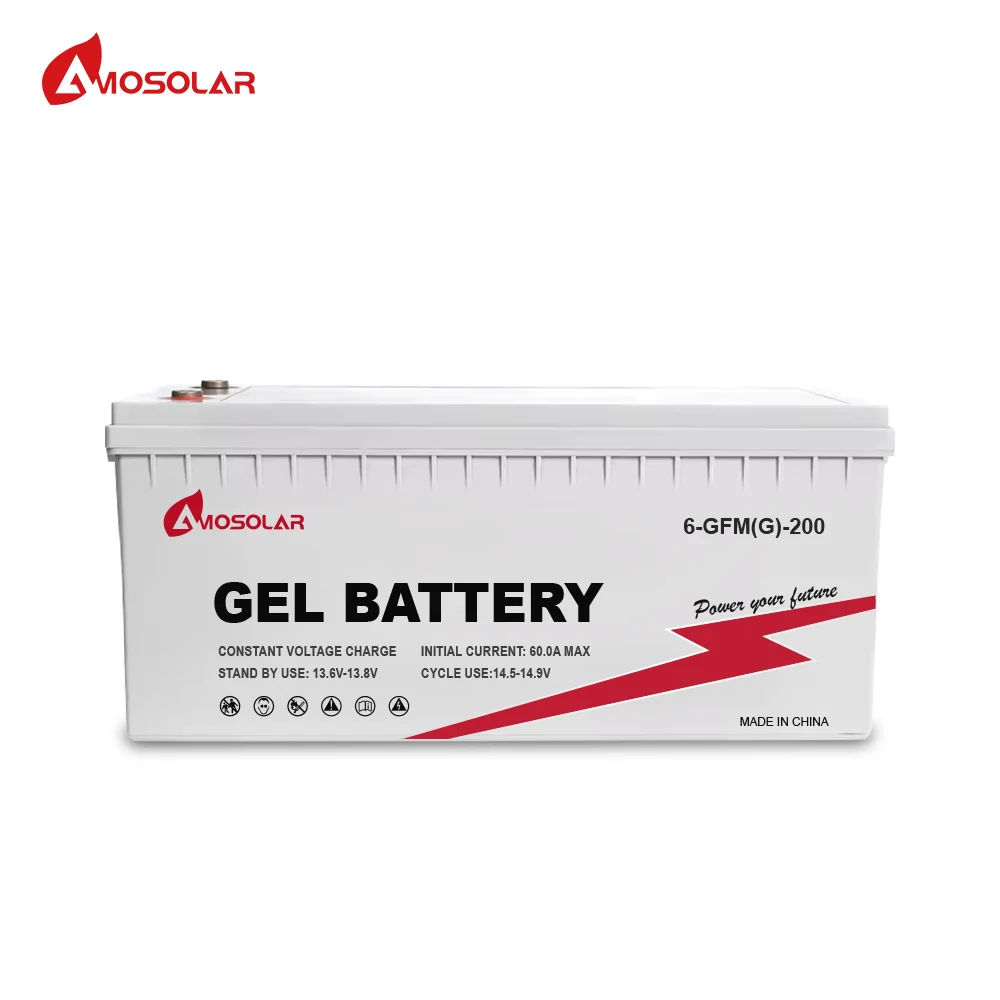

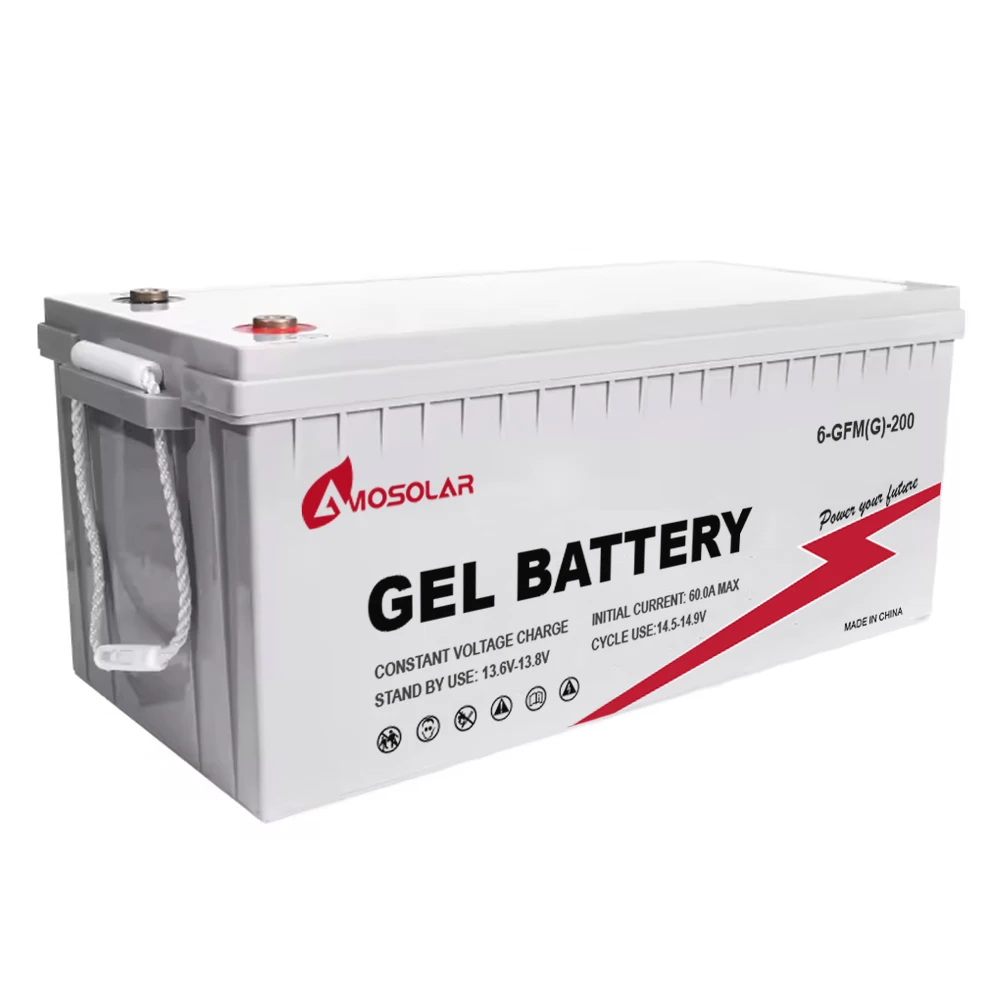

Products Description
Mechanical Data
|
Model
|
6-GFM(G)-100Ah
|
6-GFM(G)-150Ah
|
6-GFM(G)-200Ah
|
6-GFM(G)-250Ah
|
|||
|
Cells Per Unit
|
6
|
||||||
|
Voltage Per Unit
|
12V
|
||||||
|
Capacity
|
100Ah@10hr-rate to 1.80V per cell @25°C
|
150Ah@10hr-rate to 1.80V per cell @25°C
|
200Ah@10hr-rate to 1.80V per cell @25°C
|
250Ah@10hr-rate to 1.80V per cell @25°C
|
|||
|
Weight
|
29kg
|
42kg
|
58.5kg
|
67kg
|
|||
|
Internal Resistance
|
Approx. 6mΩ
|
Approx. 4mΩ
|
Approx. 3.5mΩ
|
Approx. 2.5mΩ
|
|||
|
Terminal
|
F1/F2
|
||||||
|
Max. Discharge Current
|
1500A(5s)
|
2250A(5s)
|
3000A(5s)
|
3750A(5s)
|
|||
|
Design Life
|
10~15 years
|
||||||
|
Maximum Charging Current
|
25A
|
37.5A
|
50A
|
62.5A
|
|||
|
Float Charging Voltage
|
13.6 V~13.8 V @ 25°C
Temperature Compensation: -20mV/°C/Cell
|
||||||
|
Cycle Use Voltage
|
14.4 V~14.9 V @ 25°C
Cycle Use Voltage
Temperature Compensation: -30mV/°C/Cell
|
||||||
|
Operating Temperature Range
|
Discharge: -20°C~60°C
Charge: 0°C~50°C
Storage: -20°C~60°C
|
||||||
|
Container Material
|
A.B.S. UL94-HB, UL94-V0 Optional.
|
||||||
|
Normal Operating Temperature Range
|
25°C±5°C
|
||||||
|
Self Discharge
|
Less than 3% at 25°C per month
|
||||||
|
Container Material
|
A.B.S. UL94-HB, UL94-V0 Optional
|
||||||
|
Specification
|
GEL 2V 500Ah
|
GEL 2V 1000Ah
|
|
Cells Per Unit
|
1
|
1
|
|
Voltage Per Unit
|
2
|
2
|
|
Capacity
|
500Ah@10hr-rate to 1.80V per cell @25℃
|
1000Ah@10hr-rate to 1.80V per cell @25℃
|
|
lnternal Resistance
|
Approx. 1.0mΩ
|
Approx. 0.6 mΩ
|
|
Terminal
|
M8
|
M8
|
|
Max. Discharge Current
|
2500A(5 sec)
|
4000A(5 sec)
|
|
Design Life
|
20 years (floating charge)
|
20 years (floating charge)
|
|
Maximum Charging Current
|
100.0A
|
200.0A
|
|
Initial Current
|
150.0A MAX
|
300.0A MAX
|
|
Reference Capacity
|
C3 390.0AH
C5 432.0AH C10 500.0AH C20 530.0AH |
C3 780.0AH
C5 865.0AH C10 1000.0AH C20 1060.0AH |
|
Float Charging Voltage
|
2.27V~2.30V@ 25℃
Temperature Compensation: -3mV/℃/Cell |
2.27V~2.30V@ 25℃
Temperature Compensation: -3mV/℃/Cell |
|
Cycle Use Voltage
|
2.42V~2.48V@ 25℃
Temperature Compensation: -4mV/℃/Cell |
2.42V~2.48V@ 25℃
Temperature Compensation: -4mV/℃/Cell |
|
Operating Temperature Range
|
Discharge: -40℃~60℃
Charge: -20℃~50℃ Storage: -40℃~60°℃ |
Discharge: -40℃~60℃
Charge: -20℃~50℃ Storage: -40℃~60°℃ |
|
Normal Operating Temperature Range
|
25℃± 5℃
|
25℃± 5℃
|
|
Self Discharge
|
Less than 3% at 25℃per month
|
Less than 3% at 25℃per month
|
|
Container Material
|
A.B.S. UL94-HB, UL94-V0 Optional.
|
A.B.S. UL94-HB, UL94-V0 Optional.
|
Certifications
Application
OEM Service
Packaging & Delivery
About Us
COMPANY PROFILE
COMPANY PROFILE
Amosolar is established in 2008 and located in Hefei city,Anhui province,China. We have 4
production bases with 3Gw production capacity.
Our main prodcuts are solar panels and solar batteries with International certificates
ISO, IEC,CE,TUV ,INMETRO, SONCAP,RETIE.
Amosolar always pay more attend to clients’ requests. OEM, customization and special
quantities are all available. We would like to be your best one-stop solar system provider.
Why Choose Us
QUALITY AS THE GENE OF PRODUCTS
Quality is the corner stone for the growth of the company and our compromise to the clients. We apply a rigorous system of control procedures following the guidelines of TUV requisites and implement a comprehensive range of tests before, during and after theproduction.
RIGOROUS SYSTEM OF CONTROL
Strict quality testing standards for long-life performance
Conducted under Amosolar quality assurance best practices, our stringent performance and durability testing let us guarantee you decades of worry-free operation.
* Solar Material Control * Production Control * After Production
* Solar Material Control * Production Control * After Production
PACKAGING & DELIVERING
All components are packed in separate cartons, and then firmed by wooden box. Make sure the solar system are 100% protected during transportation
